Product Overview
Outdoor-Rated 2D LiDAR with 5 to 15 Hz Scanning, Ethernet and RS-422, Low Hours
Condition
Used, clean and in good condition, with 15,767 hours logged. Limited testing covered power-up, a check of the operating hours and an assessment of basic functionality using the SOPAS Engineering Tool (not included); firmware version 1.34. It does not come with mounting brackets or hardware. Sold as one sensor; markings legible: SICK.
Ships same or next business day from our Idaho warehouse. Selling online since 1999.
Here for our customers, with a satisfaction guarantee that means what it says.
Product Overview

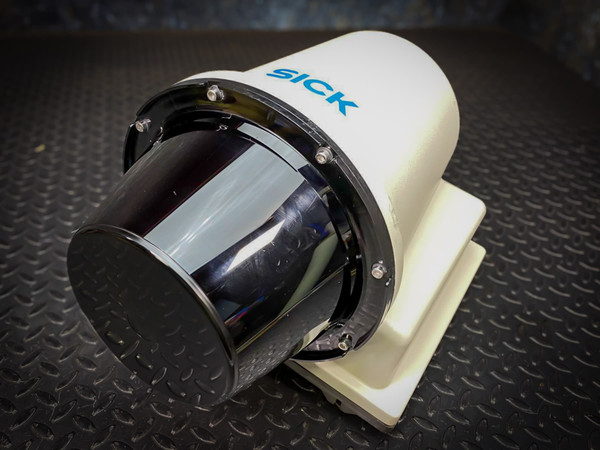

A laser measurement sensor in the SICK LD-LRS line that scans a horizontal plane all the way around, out to 250 m, at 5 to 15 Hz.
Key Features
- Full-circle horizontal field, working from 2.5 m to 250 m
- Scan frequency 5 Hz to 15 Hz
- Angular resolution from 0.0625 degree (interlaced) through 0.125, 0.25 and 0.5 up to 1 degree
- Infrared laser at 905 nm, laser class 1
- Interfaces: Ethernet TCP/IP at up to 100 Mbit/s, RS-422 serial, four digital outputs
- 24 V DC supply; the heater draws 140 W on top of 36 W for the sensor
- Single 20-pin Harting male connection
- IP67 rated; runs from -25 °C to +50 °C
Applications
- Swapping out an LD-LRS3600 that has run long hours for a lower-hour head
- Profiling stockpiles or yard positions where the reach has to run past 200 m
- Bringing up a scanner in SOPAS ET on the bench before it goes on a pole
Frequently Asked Questions
What firmware is loaded?
Version 1.34.
How many hours are on it?
15,767 hours.
Does it ship ready to bolt onto a mast?
No. It does not come with mounting brackets or hardware, and the SOPAS Engineering Tool is not included either. You get a used, clean LD-LRS3600 with 15,767 hours that powered up and had its basic functionality assessed; you take on the mount, the cabling and the setup. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
The hour counter read 15,767 on the day it was checked in SOPAS. Give it a mount and let it keep counting.
