Product Overview
MSA ICM TX Integrated PASS and HUD Transmitter - 4500 PSI SCBA, NightFighter Compatible, NFPA 1982
Condition

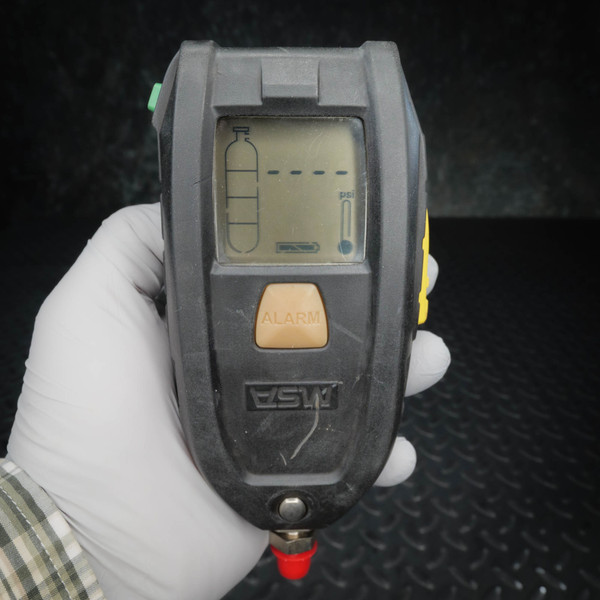

Single unit available. Used, in good working condition. Unit powers up and alarms confirmed during evaluation. LCD display active with cylinder pressure graphic and alarm indicators visible. ALARM button intact. Battery compartment contacts clean. Yellow activation button and green latch button present. Red-capped gauge fitting intact. Light surface scuffs and minor wear on housing throughout - consistent with field use. No manuals or accessories included. Batteries not included. HUD receiver not included - transmitter unit only. Serial number 24656, date of manufacture 03/06. Made in Germany. Source unknown.
Carefully packed and shipped same business day from our Idaho warehouse. Online since 1999. Honest equipment and straightforward service.
No hassle resolution if there is an issue. Serving customers since 1999.
Product Overview
MSA ICM TX (FCC ID P9R-10060782, AP5001 (L) REV 4) is a shoulder-mounted integrated PASS and HUD transmitter for 4500 psi SCBA systems. It attaches to the shoulder gauge hose, activates automatically when the cylinder valve opens, and transmits real-time air pressure data via digitally encoded radio signal to a NightFighter HUD receiver mounted in an MSA Ultra Elite facepiece. A 7-LED display on the HUD shows cylinder pressure in 25% increments directly in the firefighter's line of sight. The integrated PASS alarm monitors motion and sounds if the wearer becomes still; a manual alarm button is also present. Compliant with NFPA 1981/1982 and NIOSH standards. Rated Class I, Div 1, Groups A-D, T1 intrinsically safe.
Key Features
- Rated for 4500 psi SCBA systems - confirm your system pressure before ordering
- Shoulder-mounted transmitter mounts on gauge hose; activates automatically on cylinder valve opening
- Transmits air pressure data via digitally encoded radio to NightFighter HUD receiver
- PASS alarm with motion sensor; alerts if wearer is motionless
- Manual ALARM button present and intact (confirmed in photos)
- 7-LED HUD display shows pressure in 25% increments with automatic brightness via photosensor
- Compatible with MSA Ultra Elite facepiece (HUD receiver required - not included)
- Intrinsically safe: Class I, Div 1, Groups A-D, T1
- NFPA 1981/1982 and NIOSH compliant
- Runs on 4x AA batteries (transmitter); approved types: Duracell MN1500 or Energizer E91 only
- Housing: PBT-GF30; FCC ID P9R-10060782; Made in Germany by MSA Auer
Applications
- Fireground SCBA operations requiring heads-up air pressure awareness without looking down
- Low-visibility, high-stress rescue and interior attack operations
- Replacement or spare transmitter for departments running MSA Ultra Elite / NightFighter HUD systems
- SCBA maintenance depots and equipment refurbishment programs
Frequently Asked Questions
Is this the transmitter only, or does it include the HUD receiver?
Transmitter unit only. The NightFighter HUD receiver that mounts to the MSA Ultra Elite facepiece is not included. What you see in the photos is what ships.
What facepiece and SCBA system is this compatible with?
The ICM TX is designed for MSA SCBA systems rated at 4500 psi. The HUD receiver (sold separately) attaches to an MSA Ultra Elite facepiece. It is not compatible with non-MSA facepieces or SCBA systems at different pressure ratings such as 2216 psi. Verify your system pressure and facepiece model before ordering.
Was this unit tested?
Yes - unit powers up and alarms confirmed during evaluation. LCD display is active. Battery compartment contacts are clean. This is beyond a visual-only inspection. That said, this is life-safety equipment: installation and final certification must be performed by an MSA-certified technician per MSA requirements before placing the unit back in service.
What batteries does it take?
4x AA batteries for the transmitter. Only Duracell MN1500 or Energizer E91 AA batteries are approved - using other types voids the intrinsic safety rating. Batteries are not included.
Is the unit field-serviceable?
Battery cover replacement is the only field-serviceable action. All other repair or service must be performed by MSA. Do not attempt to disassemble beyond the battery compartment.
Firefighters have been managing air in the dark for generations - a glance down at a gauge, a distraction, a moment of lost situational awareness. The ICM TX moved that information into the line of sight. This unit powered up, alarmed, and is ready for a certified tech to put it back where it belongs - on a shoulder hose, in the field, doing its job.
