Product Overview
Size 7 Sure-Flex EPDM Split Coupling Sleeve and 1-1/8 Inch Bore Flange for a Flexible Shaft Coupling
Condition

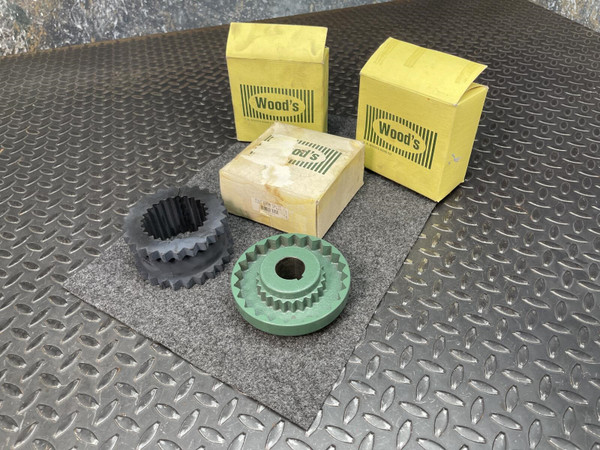

Unused new old stock; the boxes have some damage from storage. The buyer receives 2x 7JES and 1 x 7SX1 1/8 Coupling. Markings legible: SURE-FLEX® COUPLING SLEEVE, SONS COMPANY / Chambersburg, Pa. U.S.A. and 2,867,102 and 2,867,103 on one sleeve; WOODS 7S 1 1/8 on the flange; Wood's, 7JES EPDM SPLIT, 698672 63011 and MADE IN USA on two boxes; Wood's, 7SX1 1/8, 698672 64036 and MADE IN USA on one box.
Ships same or next business day from our Idaho warehouse. Selling online since 1999.
Product Overview
TB Woods Sure-Flex coupling parts. The 7JES is a single-piece EPDM split sleeve, the flexible element that runs between two coupling flanges, and it can be replaced without taking the hubs off the shafts. The 7SX1 1/8 is a flange with a 1 1/8 inch bore and a keyway.
Key Features
- 7JES: size 7 Sure-Flex sleeve, single-piece EPDM, split
- Split sleeve swaps without removing the hubs from the shafts
- 7SX1 1/8: Sure-Flex flange, 1 1/8 inch bore
- Keyway in the flange bore, with two holes in the hub
Applications
- Changing a worn size 7 Sure-Flex sleeve without pulling the hubs
- Fitting a 1 1/8 inch shaft with a Sure-Flex flange
- Keeping a spare sleeve on hand for a drive that calls out 7JES
Frequently Asked Questions
What is the sleeve made of?
EPDM.
Does the split sleeve need the hubs pulled to change it?
No. It is a single-piece split sleeve, so it goes on and comes off without taking the hubs off the shafts.
What size is the 7JES sleeve?
Size 7 Sure-Flex.
Is the 7SX1 1/8 flange bored for a 1-1/8 inch shaft?
Yes. It has a 1 1/8 inch bore with a keyway, and the parts are unused NOS. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
The flange carries 7S and 1 1/8, the sleeve carries SURE-FLEX, and the split runs straight through the sleeve wall. Hold it up to the old sleeve and count the teeth.
