SAE Code 61 Four-Bolt Flange Clamp Kit, 1/2 Inch (-8), Eaton Weatherhead
Condition

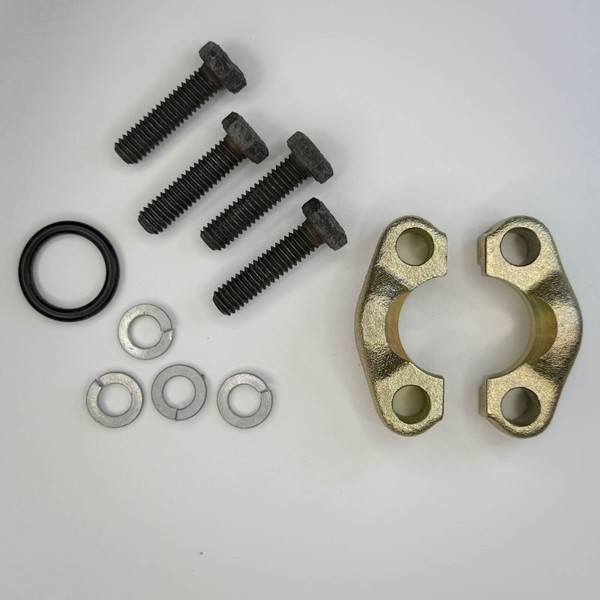

Unused new old stock in the original manufacturer packaging, opened to photograph the contents. Contents: two yellow zinc-finished clamp halves, four black hex head bolts, four split lock washers and one O-ring.
Ships same or next business day from our Idaho warehouse. Selling online since 1999.
Satisfaction guaranteed, every time.
Product Overview
Eaton's SFK-8 is the 1/2 inch Code 61 split flange kit from the Weatherhead line. The two clamp halves straddle the flange head of a hose fitting or adapter, the four bolts pull it tight against the port, and the O-ring makes the seal on the port face. Code 61 is the standard-pressure series of the SAE J518 four-bolt flange.
Key Features
- SAE Code 61 split flange, 1/2 inch (-8) size
- Two clamp halves, yellow zinc finish
- Four black hex head bolts
- Four split lock washers
- One O-ring for the flange face
Applications
- Mounting a 1/2 inch Code 61 flange head hose fitting to a pump, motor or valve port
- Replacing cracked or lost clamp halves and bolts during a hose change
- Keeping a complete matched kit ready for a machine that uses Code 61 ports
Frequently Asked Questions
Will this kit fit a Code 62 port?
No. Code 61 and Code 62 clamp halves are sized differently for the same nominal size. This kit is Code 61, 1/2 inch.
Is the flange head fitting included?
Not included. The kit holds a flange head fitting or adapter to the port; the fitting is sold separately.
How do I tell a Code 61 port from a Code 62 port?
Measure the bolt spacing. A 1/2 inch Code 61 port spaces its bolts 1-1/2 inch across the long side of the pattern; a Code 62 port of the same size measures 1-19/32 inch. Both codes take 5/16-18 bolts at this size, so the thread will not tell them apart. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
Four bolts and two halves of steel hold back the whole pump. Match the code and the size, and the joint will never ask for attention again.
